The Comprehensive Guide to the HID Signo 20 Access Control Reader

In modern corporate environments, perimeter security requires a careful balance between high-grade physical protection and a seamless user experience. Facilities directors, security consultants, and IT leaders often find themselves managing fragmented systems: legacy proximity cards, modern mobile credentials, and narrow architectural entryways. To eliminate physical security blind spots and streamline multi-site infrastructure, deploying the HID Signo 20 access control reader has become the benchmark for commercial buildings.

At XS Controls, we specialize in reselling and engineering enterprise-grade physical access control systems across the UK. We know that transitioning from legacy badge infrastructure to encrypted, cloud-ready hardware can feel daunting. Choosing a future-proof HID Signo 20 access control reader simplifies that migration path. In this comprehensive technical guide, we explore why this sleek mullion reader dominates the security industry, examine its core specifications, and highlight the commercial value it brings to enterprise facilities.

Understanding the HID Signo 20 Access Control Reader

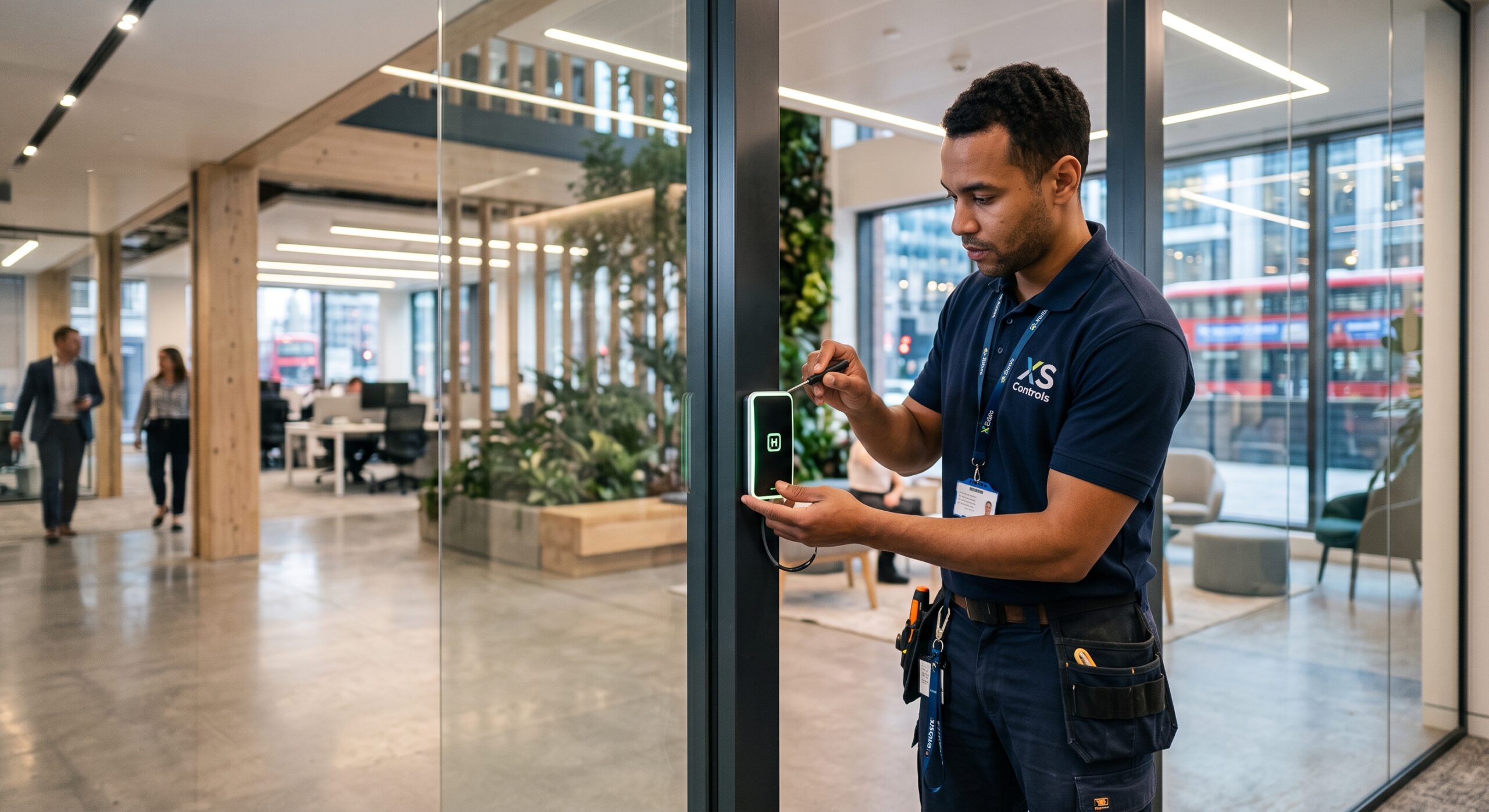

The Signo product line represents HID Global’s flagship platform for smart card and mobile credential reading. Specifically, the HID Signo 20 access control reader is engineered with a compact, narrow form factor designed primarily for mullion mount installations. When doors feature architectural glass, narrow aluminium frames, or tight structural reveals, standard single-gang wall readers simply will not fit.

┌─────────────────────────────────────────────────────────────┐
│             HID SIGNO 20 HARDWARE PROFILE                   │
├──────────────────────┬──────────────────────────────────────┤
│ Form Factor          │ Slim Mullion Mount (45 mm width)     │
│ Ingress Protection   │ IP65 Weatherproof & UL294 Outdoor    │
│ Cryptographic Core   │ EAL6+ Certified Secure Element       │
│ Panel Protocols      │ OSDP (v2.2 Secure Channel) & Wiegand │
│ Mobile Technology    │ Bluetooth Low Energy (BLE) & NFC     │
└──────────────────────┴──────────────────────────────────────┘

Despite its slim footprint, the HID Signo 20 access control reader packs extensive multi-technology compatibility. It bridges the gap between legacy 125 kHz proximity cards and cutting-edge 13.56 MHz high-frequency contactless smart cards, while natively supporting mobile access via smartphones and smartwatches.

Multi-Credential Support: The Ultimate Migration Platform

One of the largest hurdles commercial facilities face is the cost of re-credentialing thousands of workers overnight. Ripping and replacing every employee badge simultaneously is expensive and logistically disruptive.

Deploying the HID Signo 20 access control reader enables a phased, cost-effective migration strategy. Because the reader supports over 15 distinct credential technologies out of the box, your facility can run legacy badges and next-generation credentials side by side:

• Legacy Low-Frequency RFID: Full backward compatibility with 125 kHz formats, including HID Proximity, Indala, AWID, and EM Prox.
• High-Frequency Smart Cards: Native support for 13.56 MHz contactless protocols, including Seos, iCLASS SE, iCLASS SR, MIFARE Classic, and MIFARE DESFire (EV1, EV2, and EV3).
• Mobile Credentials via HID Mobile Access: Native support for Bluetooth Low Energy (BLE) and Near Field Communication (NFC), enabling “tap-in” or gesture-based (“Twist and Go”) entry using smartphones.
• Apple Wallet Integration: Support for Apple’s Enhanced Contactless Polling (ECP) allows corporate badges stored directly in Apple Wallet to authenticate smoothly.

By selecting the versatile HID Signo 20 access control reader, security teams can keep legacy fobs active while gradually rolling out encrypted mobile keys, avoiding budget shocks and operational friction.

Uncompromising Hardware Security and Encryption

Physical card skimming and brute-force replay attacks are growing threats to modern corporate hubs. Older Wiegand communication lines transmit badge data in unencrypted, clear text, allowing bad actors with compact data sniffers to clone access cards in seconds.The HID Signo 20 access control reader is built from the ground up to prevent these vulnerabilities:

1. EAL6+ Certified Secure Element

The reader houses a certified hardware Secure Element (EAL6+), providing ultra-secure cryptographic key storage. This ensures that sensitive authentication keys cannot be physically or electronically extracted from the reader hardware mounted outside the door.

2. Open Supervised Device Protocol (OSDP)

While the unit retains backward compatibility with legacy Wiegand panels, it natively supports OSDP v2.2 Secure Channel. When paired with an OSDP-compliant door controller, the HID Signo 20 access control reader establishes continuous two-way, bidirectional AES-128 encrypted communication. This safeguards the wiring runs against wiretapping, tampering, and credential interception.

3. Automatic Surface Detection & Recalibration

Mounting a high-frequency reader directly onto metal door frames typically degrades read range performance due to radio frequency interference. The HID Signo 20 access control reader features patented surface detection technology that automatically recalibrates its internal antenna parameters to optimize read range, regardless of the mounting substrate.

Centralized Lifecycle Maintenance: The HID Reader Manager

Maintaining enterprise door hardware has traditionally required manual intervention. If an encryption vulnerability surfaced or audio-visual settings needed adjustment, technicians had to walk door to door with configuration cards or ladders.

Implementing the HID Signo 20 access control reader transforms fleet maintenance. Using the HID Reader Manager mobile application or secure cloud connectors via HID Origo, administrators can manage the devices over-the-air:

• Push secure firmware updates instantly across the building network to patch emerging exploits.
• Configure the tri-color LED status light bar and audio buzzer to align with corporate accessibility standards.
• Deactivate unneeded legacy 125 kHz frequencies once migration is complete, closing off legacy attack vectors permanently.

Commercial ROI: Why Facilities Invest in the Signo 20

Procurement teams evaluate door security through the lens of long-term Total Cost of Ownership (TCO). While cheap, proprietary proximity readers have a slightly lower upfront ticket price, they create recurring liabilities through replacement card orders, security exposures, and maintenance hours.

Feature	Legacy Proximity Readers	HID Signo 20 Access Control Reader
Credential Support	Single technology (often unencrypted 125 kHz)	15+ formats (125 kHz, 13.56 MHz, BLE, NFC)
Tamper & Wiretap Defense	Unencrypted Wiegand vulnerable to interception	OSDP Secure Channel with AES-128 Encryption
Frame Flexibility	Bulky footprints often require wall cutting	45 mm slim profile fits narrow door mullions
Device Configuration	Manual on-site cards or dip switches	Remote over-the-air via HID Reader Manager
Weather Durability	Variable; prone to water ingress	IP65 rated; operates from -35°C to +66°C

Investing in the HID Signo 20 access control reader delivers an immediate return by cutting plastic badge issuance costs, extending hardware lifespan, and reducing administrative workload through automated mobile provisioning.

Why Source Your Signo Readers from XS Controls?

Selecting and commissioning enterprise access control hardware requires more than buying components off a shelf. At XS Controls, we serve as a consultative commercial reseller and system architecture specialist. We do not just ship readers; we ensure your entire physical access control ecosystem operates harmoniously.

When you procure your HID Signo 20 access control reader deployment through XS Controls, you benefit from:

• Tailored Credential Architecture: We guide your team through cryptographic key management, Elite program key structures, and mobile credential licensing.
• System Interoperability: We verify panel compatibility, controller firmware requirements, and OSDP configurations prior to shipment to ensure quick on-site commissioning.
• Competitive Reseller Pricing: We provide aggressive project registration and volume discounts for commercial building retrofits and new multi-tenant developments.

Conclusion: Harden Your Doors with Confidence

Narrow entrance profiles, mixed credential technologies, and evolving cybersecurity threats should never dictate your physical security limits. Upgrading your building’s checkpoints to the HID Signo 20 access control reader delivers uncompromised cryptographic protection, reliable mobile-ready convenience, and the slim design needed for modern commercial architecture.
